High-Speed Stacking Door

I. What is a High-Speed Stacking Door?

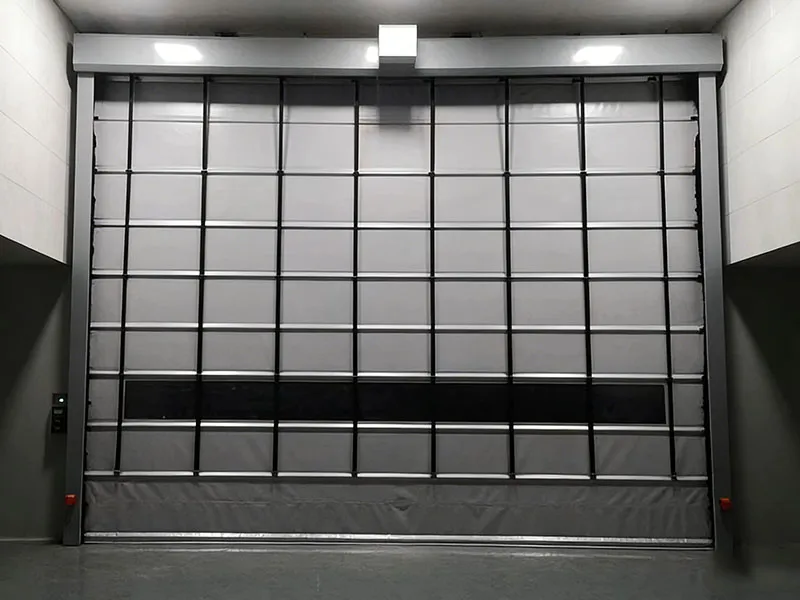

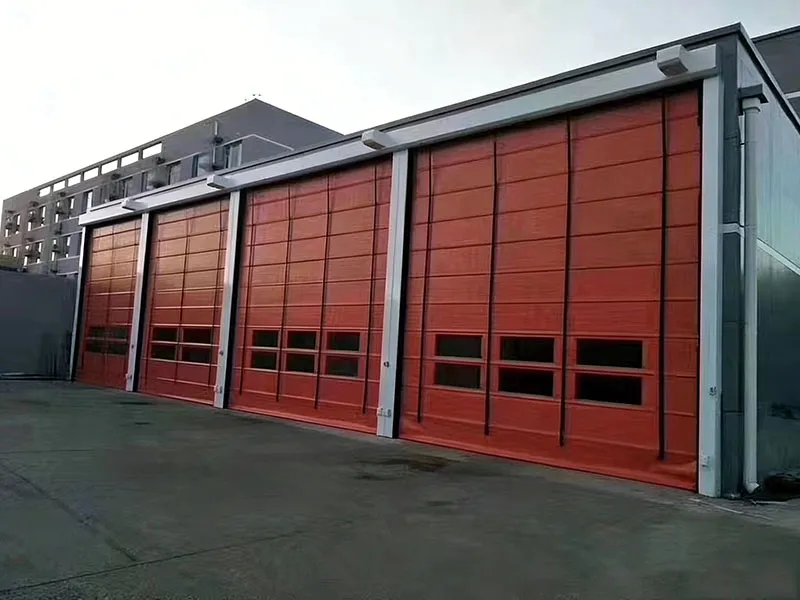

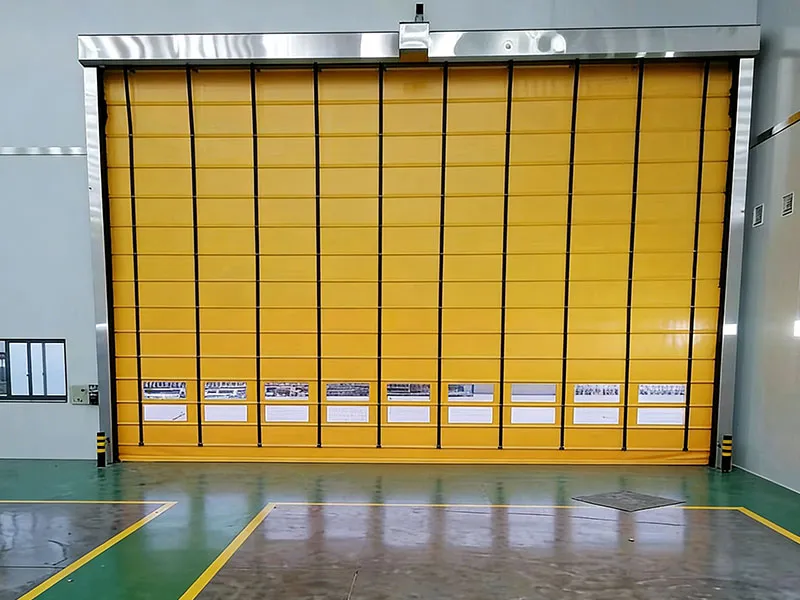

A high-speed stacking door is a high-speed industrial door that operates by stacking segmented curtains upwards. Unlike traditional roller shutter high-speed doors, when opening, the curtains do not roll onto the axis. Instead, multiple horizontal wind-resistant bars stack the curtains layer by layer to the top of the doorway. This structural design significantly enhances the door's wind resistance, making it particularly suitable for large doorways or frequently accessed outdoor areas.

In designing this product, we fully considered the balance between structural strength, operating speed, and safety performance, ensuring that the door remains stable, safe, and durable even at high speeds.

II. High-Speed Stacking Door Structure

Door curtain

Sectional type curtain for filling high density polyester fiber (thickness 1.0mm),transparent window for transparent PVC film (thickness 1.5mm)

Portal frame structure

2mm thick high-quality corrosion of cold rolled steel plate multi-channel processes forming, silver gray (default color,also optional for other color) spray, paint processing,compact appearance, beautiful, strong and durable.

Drive system

Drive motor power: 0.55-1.5kw; voltage:220V/380V.

Control system

IP55 box is compatible with all kinds of protection devices, which can be used to control the PLC, and the overall safety of the vehicle and goods by using the digital program is realized.Blackout manual rocker, can be easily opened or closed.

Running speed

Switch speed 0.6 m / sec.

Manual operation of the rapid opening of the pull rod (optional), power cut manual rocker.

III. Core Product Advantages

1. High-Speed Opening and Closing, Improving Logistics Efficiency

Our high-speed stacking door utilizes a high-performance servo drive system, allowing the door's opening and closing speeds to be adjusted according to on-site needs. Rapid opening and closing not only reduces waiting time for vehicles and personnel but also effectively improves overall logistics efficiency. For factories and warehouses requiring frequent access, this efficiency improvement directly translates into reduced operating costs.

2. Strong Wind Resistance, Suitable for Large Doorways

Many external doorways or loading/unloading areas face the challenge of continuous or sudden wind pressure. Stacking doors, with their multiple wind-resistant crossbars and high-strength guide rail structure, enable them to withstand higher levels of wind pressure when closed. For doorways exceeding 6 meters in height, we can also provide customized solutions to ensure long-term stable operation.

3. Excellent Sealing Performance and Energy Savings

We use high-density PVC curtain material combined with a double-sided sealing structure design, effectively preventing dust, cold air loss, and the ingress of hot outside air when closed. For cold chain storage, food processing, or precision manufacturing workshops, excellent sealing performance not only helps maintain a constant temperature environment but also significantly reduces energy consumption.

4. Intelligent Control System for Safer Operation

High-speed stacking doors are equipped with multiple safety protection systems, including infrared safety photoelectric protection devices, bottom safety airbags, and fall protection systems. When the door encounters an obstacle during operation, the system will immediately stop or reverse, thus preventing injury to personnel and equipment. We can also integrate radar sensing, geomagnetic sensing, or remote control systems according to customer needs, making the door operation more intelligent.

IV. Structural Design and Technical Details

Our structural design adopts a modular concept, making the product easy to install and maintain. The door frame is typically made of high-strength galvanized steel or aluminum alloy, with a corrosion-resistant surface treatment to withstand humid, high-temperature, or dusty environments.

The curtain material has excellent wear resistance and tear resistance, and also supports customized transparent windows to enhance indoor lighting and visibility. The drive system operates smoothly and features soft start and soft stop functions, effectively reducing mechanical impact and extending equipment lifespan.

V. Typical Application Scenarios

High-speed stacking doors are widely used in the following industries:

Logistics distribution centers and warehousing centers

Manufacturing plant workshop entrances and exits

Ports and large industrial parks

Cold chain and food processing industries

Waste disposal and recycling facilities

In these scenarios, companies often need to balance high-frequency operation with environmental isolation. Our high-speed stacking doors can maintain stable operation under high-intensity use conditions while reducing energy loss due to air convection.

VI. Why Choose Us?

As a professional industrial door manufacturer, we not only provide standardized products but also offer customized designs based on customers' door opening dimensions, usage frequency, wind pressure levels, and environmental conditions. We have a mature production system and strict quality control processes, with multiple inspections conducted from raw material selection to finished product delivery.

We understand that every industrial door directly impacts our customers' operational efficiency. Therefore, we provide technical support and after-sales service along with product delivery to ensure the door maintains optimal operating condition throughout its entire lifecycle.

VII. Empowering Businesses to Achieve Efficient Operations

High-speed stacking door are more than just doors; they are crucial tools for businesses to improve efficiency and optimize environmental management. When companies are looking for industrial doors that combine high-speed operation with strong wind resistance and excellent sealing, this product is the ideal choice.

If you are planning a new factory construction project or looking to upgrade your existing door system, please contact us. Our technical team will provide professional advice and customized solutions based on your specific needs, helping you create a more efficient, energy-saving, and safer industrial space.
